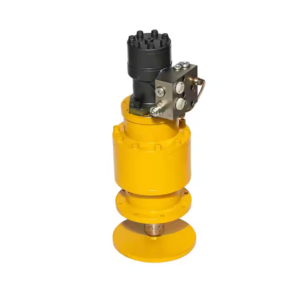

Rotary speed reducer
Output torque is 2000 millimeters
Pressure reaches 18mpa.
The output speed ranges from 0 to 50 revolutions per minute, with the motor model being Rmr250.
The flow rate is 60 liters per minute, and the motor torque is 520 millimeters.

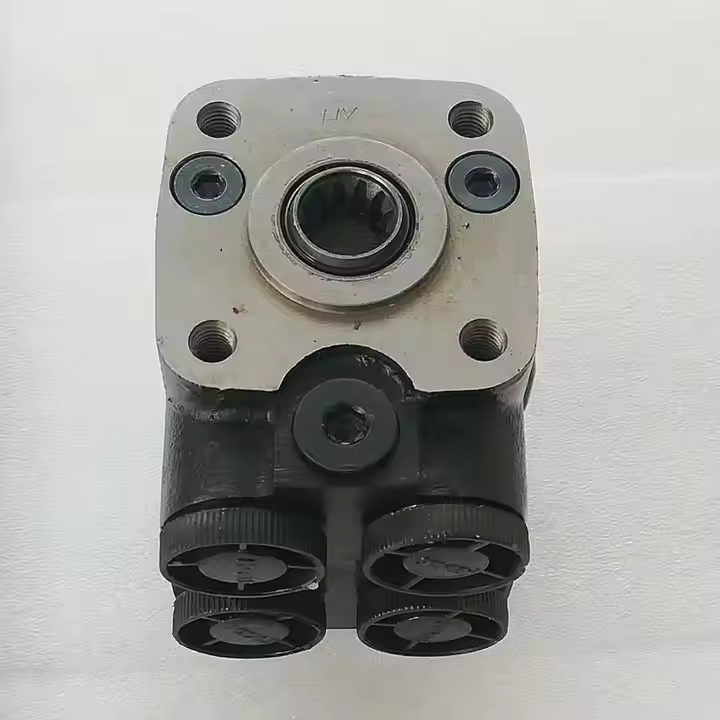

Hydraulic Steering Control Unit
Main Specification Data – Maximum system pressure… 16 MPa – Maximum back pressure… 2.1 MPa – Input torque… 2.8 – 4.0 N·m – Maximum system operating temperature… 93 °C – Recommended oil filtration… ISO 18/13
Pump Shaft Accessory
Weight 75kg
Speed 3500
Pressure 3500MP
Model No. A2fo
Origin Rexroth Dflr Control Valve HS Code 8413606090

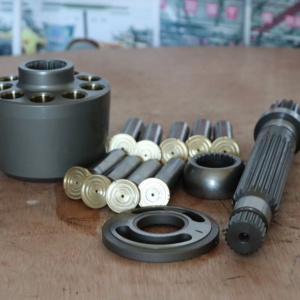

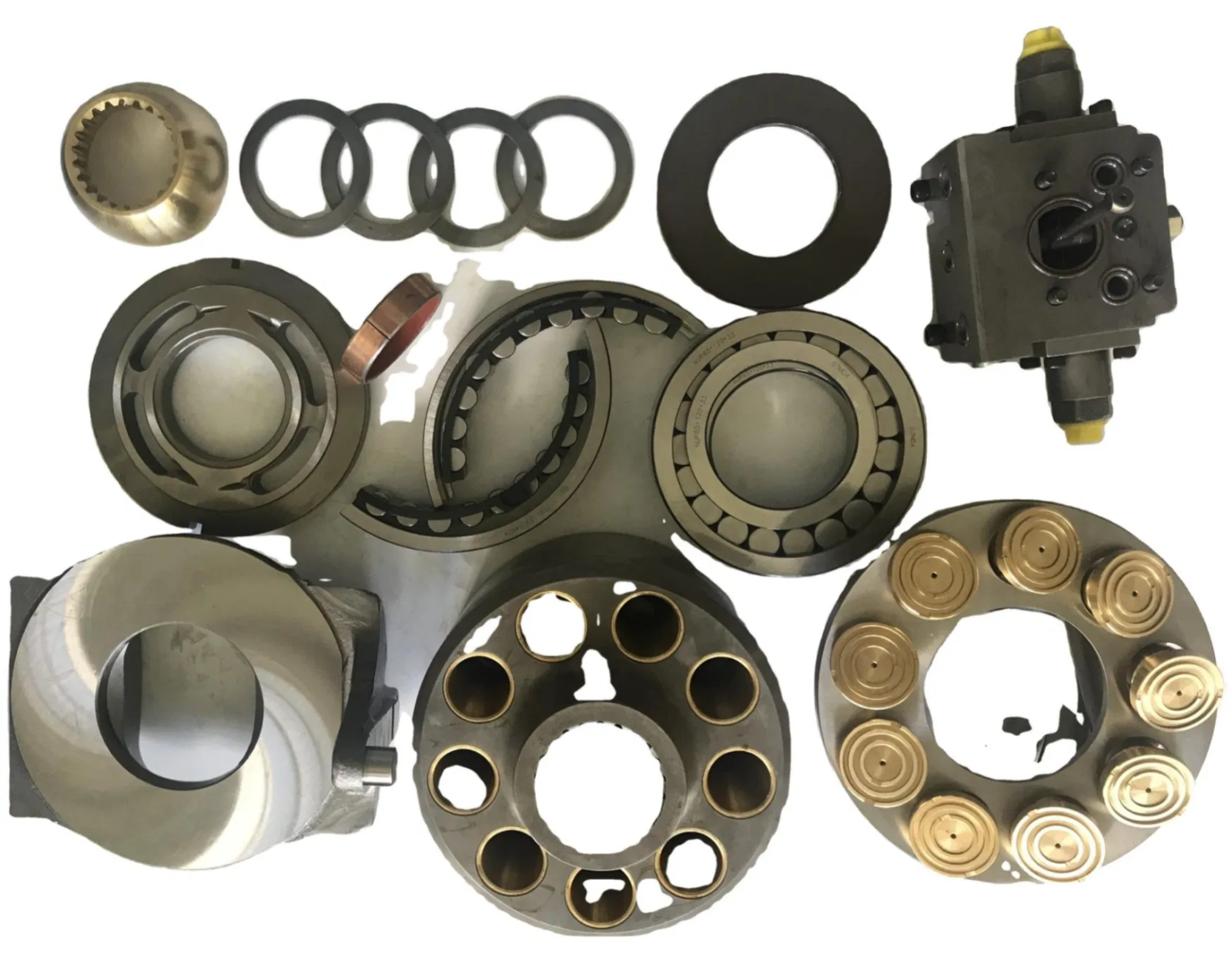

Hydraulic Piston Pump Parts
Drive Mode: Hydraulic Pump Shaft Position: Horizontal Type Axial Power :Hydraulic Straight Shaft Swashplate Piston Type Axial Radial Plunger Pump Type Axial Flow Model :Rexroth Series
HYDRAULIC POWER STATION
Pump rated pressure P1: 276 bar
Intermittent pressure P2: 300 bar
Peak pressure P3: 330 bar
Pump speed: 500 – 4000 revolutions per minute
Maximum torque: 87 Nm
20-TON LOGGING WINCH DRILLl RIG WITH TRACTION WINCH HYDRAULIC SYSTEM
Outside Diameter : 6 mm to 114.3 mm
Wall Thickness : 0.50 mm-6.00 mm
Length : Max 30 meters
Road construction High-quality and durable asphalt paver
1.Production Capacity:1500㎡/h
2.Max. Paving Thickness:50mm
Last News
Working Principle :

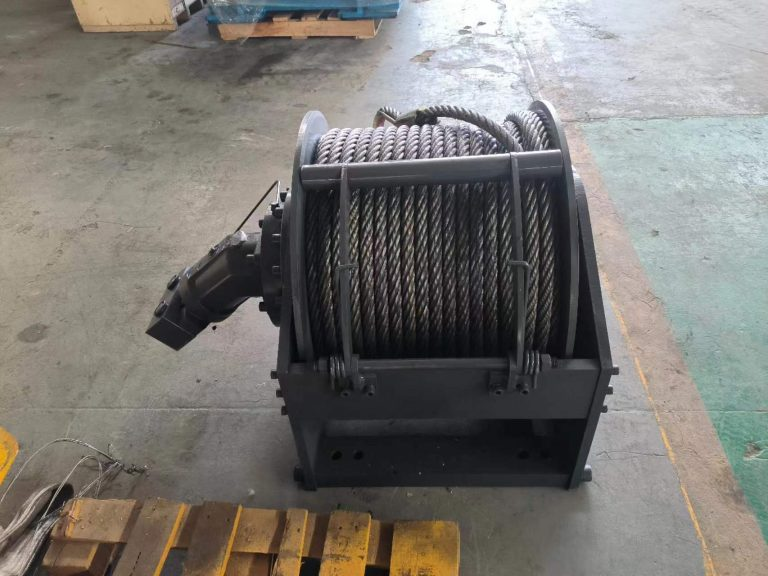

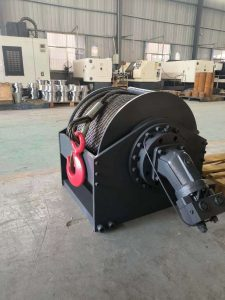

The hydraulic pump draws oil from the hydraulic tank, and transmits the hydraulic oil to the hydraulic motor of the winch through the tubing, which drives the shaft inside the hydraulic motor to rotate, and the shaft drives the gear inside the winch to rotate, and the gear is connected to the winch drum, and the gear rotates, and the drum rotates, thereby lifting or lowering the heavy object.
